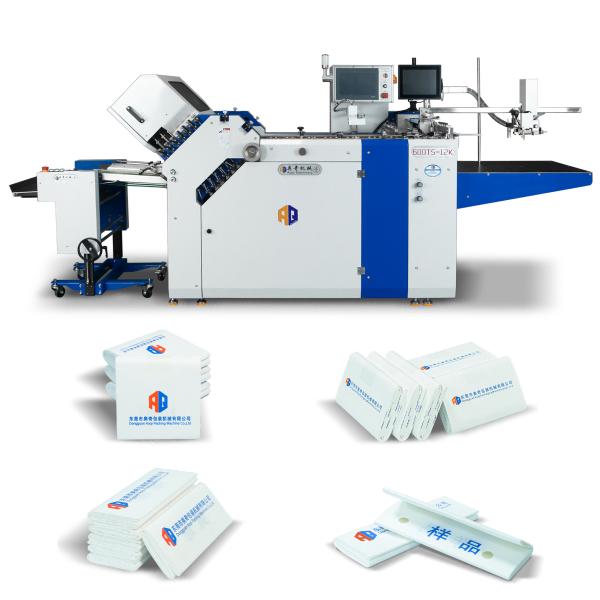

AOQI's Pharma Large Format Leaflet Outsert Production Paper Folder For Pharma Industry

  • 1
  • 2

Brand Name : AOQI

Place of Origin : China

Certification : CE Certificate

MOQ : 1 set

Packaging Details : wooden box

Delivery Time : 15-25days

Payment Terms : T/T

Supply Ability : 700pcs/year

Model Number : 600TS -12K

Type : Pharmaceutical Outsert Folding System

Max.infeed size : 600*1000mm

Min.infeed size : 100*160mm

Folding Speed : 220m/min

Paper weight : 40-300g

Power : 380V

PLC : Schneider

Feeding method : Air suction feeding

Fold Type : Single fold, Double fold, Z fold, Letter fold, Accordion fold, Gate fold, etc.

Scope Of Application : Cosmetic, Pharmaceutical ,electronic Appliances,printing

Optional unit : The second station、Vertical stacker、pressing unit、parallel knife

Packing : Wooden box+stretch film + transparent polybag

Contact Now

Product Description:

600TS-12K outsert folding machine is a pile feeder machine for 600mm wide and 1000 mm long papers It is specially designed for papers from 40 gsm to 300 gsm and it's for the difficult and complicated sheet folding.The folder is equipped with a camera inspection system to detection double sheets and through paper ejection online with non-stop operation.

Paper Folding Machine.pdf

Technical Parameters:

Max.infeed size 600*1000mm
Min.infeed size 100*160mm
Paper weight 40-300g
Max.speed of folding roller 220m/min
Voltage 380V
Power 4.85KW
Machine net weight 771.5KG
Machine dimensions 350*125*160CM

Features:

1,All the gears and the bearings are imported. Automatic oil supply for the bearing and also for the second station.

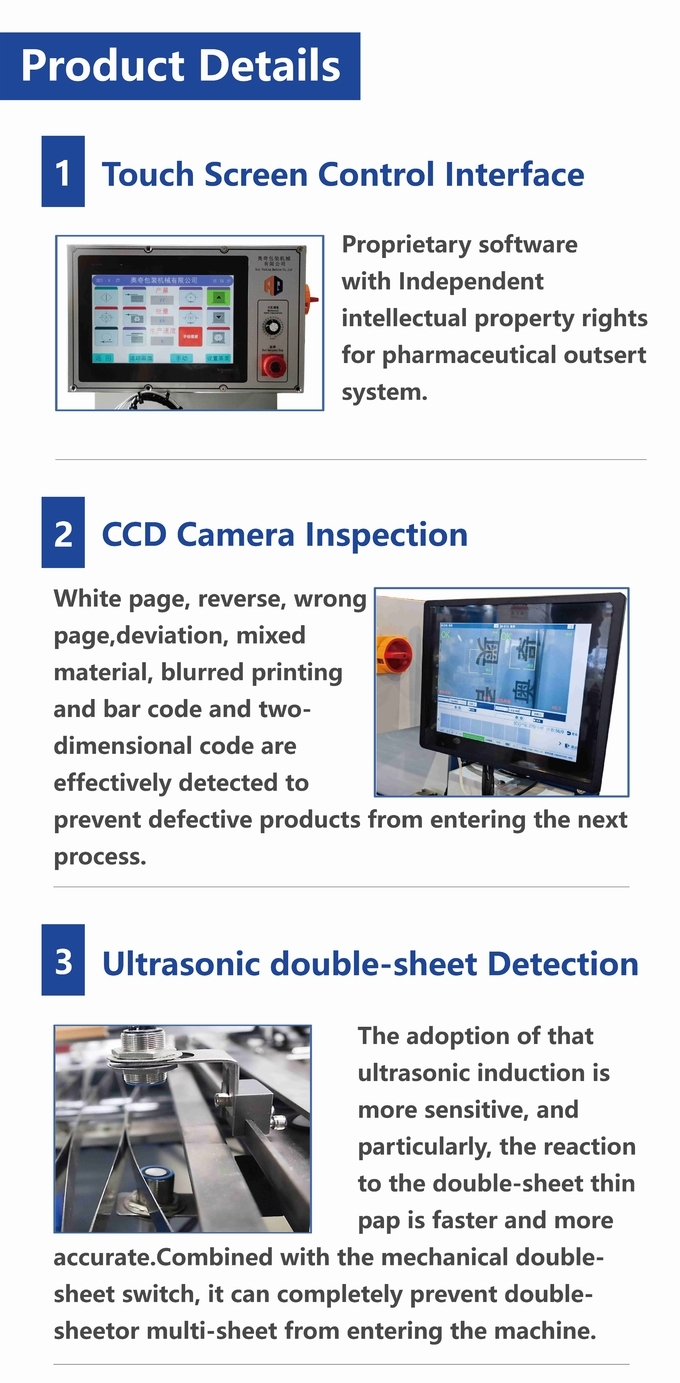

2,Touch screen Control panel --proprietary software with Independent intellectual property rights for pharmaceutical outsert system.

3,Equipped with Ultrasonic double-sheet Detection to Identify two or more pieces or sheets inadvertently adhering together.

4,A simple turn of the adjustment dial ;easy to adjust the size,the digital displays are imported from Germany SIKO.

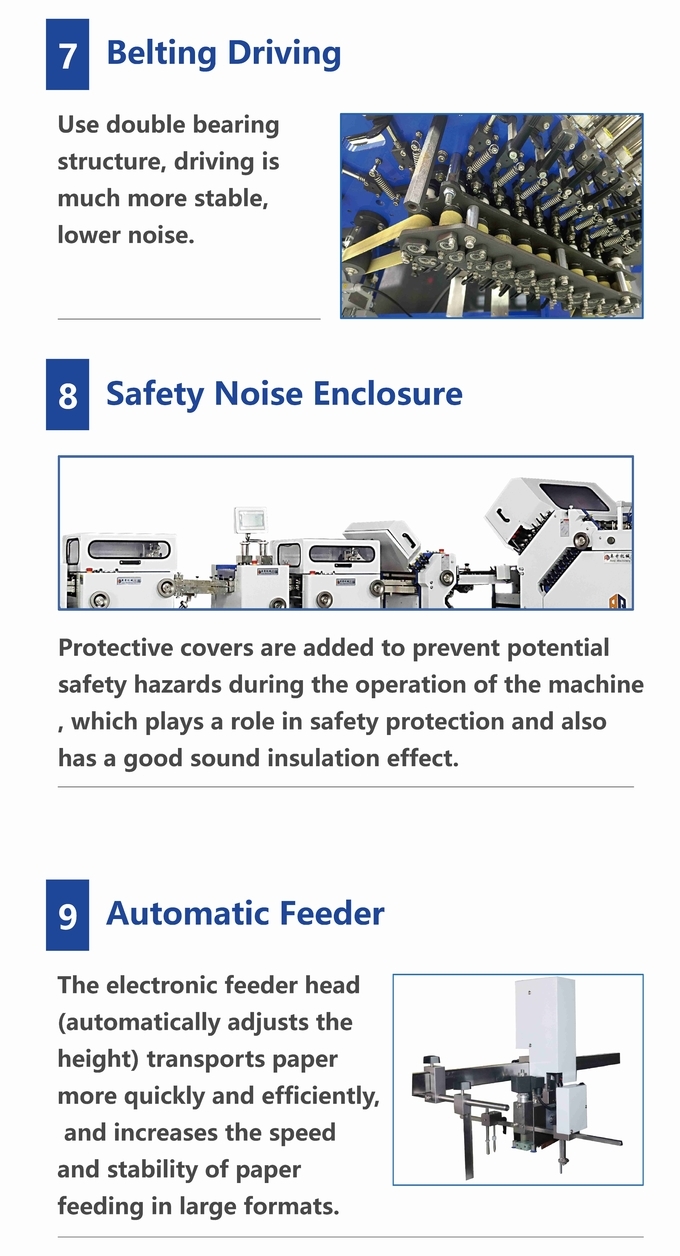

5,Silent Belt Driving,use double bearing structure,driving is much more stable, lower noise.
